Large Home Structure Protection System – Level 2

$3,799.00 CDN

Expanded package with two Water Winger rooftop sprinklers, ground sprinklers, hose and fittings for larger homes and wider coverage.

Description

Level 2 complete system

Expanded full-loop protection for larger properties

Use two Water Wingers and four adjustable ground sprinklers around a large home, or split the coverage between a home and a nearby building. Each sprinkler has its own controlled branch. The equipment comes packed together for storage and setup.

6 sprinklers2 rooftop + 4 ground
32–36 US GPMcombined system demand
50 PSIplanning pressure at the sprinklers
250 ftincluded 3/4-inch main loop

Check each deployment path

Confirm the line length for both Water Wingers

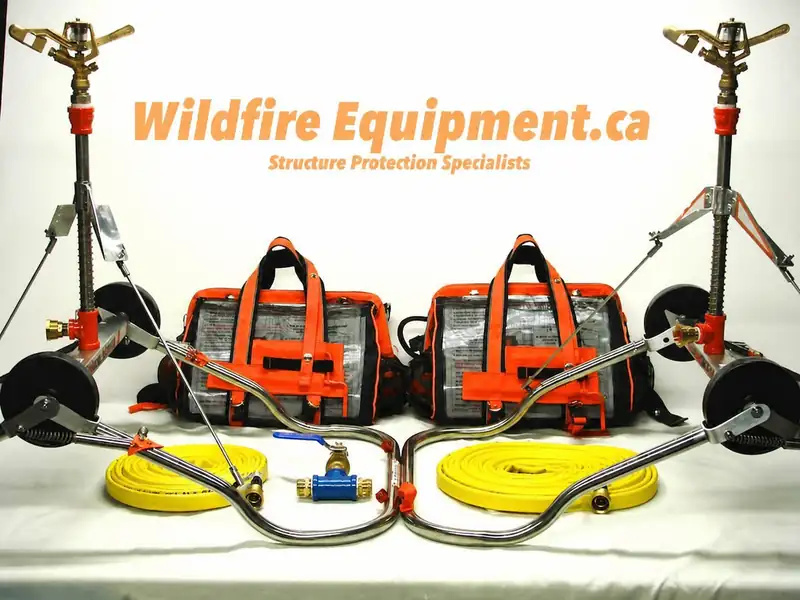

Each Water Winger includes its standard 100-foot deployment line set. Measure the complete route from the ground, up and over each structure, to confirm that the included lines will reach the intended roof peaks.

If either route requires a longer line set, contact us before ordering and we will help confirm the appropriate length.

Diagram showing the measurements used to determine the Water Winger deployment line length

Typical Level 2 layout

Plan the full loop before deployment

The supplied 3/4-inch hose builds a 250-foot main loop around the structure. Measure from the loop-start connection all the way around the property; add more 50-foot main-line hose if the route exceeds 250 feet.

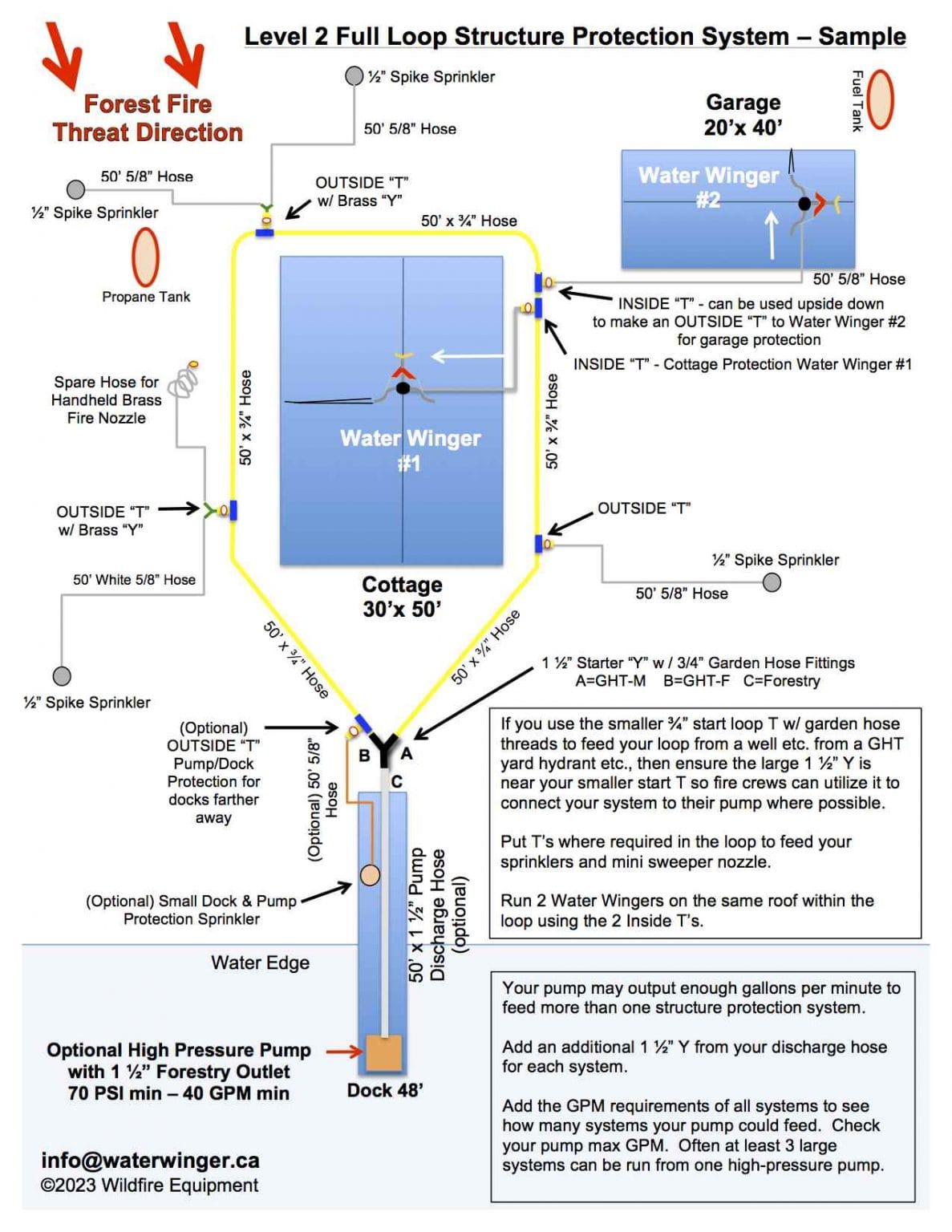

Sample Level 2 structure-protection layout with two rooftop sprinklers and four ground sprinklers

Water-supply planning

Confirm pressure and flow before relying on the system

Standard planning target

  • 32–36 US GPM combinedPlanning flow for the complete six-sprinkler configuration shown.
  • 50 PSI at the sprinklersConfirm the available pressure after feeder hose, loop hose, fittings and elevation losses.
  • 5–9 US GPM per Water WingerThe included 3/16-inch and lower-flow 5/32-inch main nozzles help match different water supplies.
  • Included nozzle setsEach Water Winger includes 3/16-inch and 5/32-inch main nozzles, a 3/32-inch spreader nozzle and a nozzle plug.

If the supply is limited

  • Confirm the source equipmentThe pump and feeder hose are selected separately and must supply the required flow at sufficient pressure after all system losses.
  • Use the included loop-start connectionThe 1.5-inch forestry connector feeds the 3/4-inch full loop from a suitable pump, irrigation supply or well system.
  • Use the lower-flow nozzlesThe included 5/32-inch main nozzles can help match a lower-capacity water supply.
  • Run sprinklers in zones if neededIf the supply cannot operate all six sprinklers together, divide the system into zones and run only the number the supply can support at one time.

Made to be used season after season

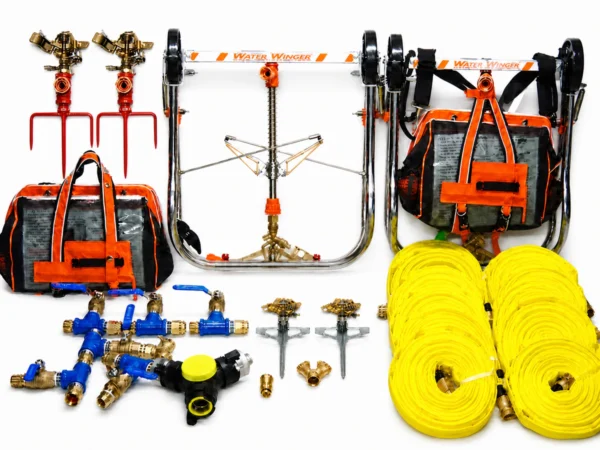

Hose and fittings packed together

The large-bore valves and fittings limit flow restriction and have a blue powder-coated finish. Hose and fittings come in two labelled totes with an inventory list and layout guide. Each Water Winger has its own kit and a five-year limited warranty.

Coverage and planning figures are estimates. Actual performance varies with the water source, hose length, elevation, fittings, equipment condition, nozzle selection, wind, roof geometry, terrain, obstructions and overlap between sprinklers. Flow-test the complete layout before relying on it.

Additional information

Weight 95 lbs
