Level 3 Max – 1.5″ Home and Property Protection System

Description

Level 3 Max systems are designed and customized to your requirements.

Don’t wait until the fires are here to start this process.

There is a limit to how many systems we can take on at once.

We work hard to ship custom orders in: Less than 10 days.

Photos and more information will be posted soon!

If you have or are planning to get a pump and a good water source is nearby, use it to it’s Max.

If you are planning to stay to defend, have more assets to protect, or have coniferous trees and combustible landscaping nearby, this system moves more water to more locations to give you more options to better wet around your buildings and combustible areas for maximum protection.

The Level 3 Max System is similar in setup to the Level 2 Standard System, but must be fed from a good water source using a proper sized, high pressure pump.

With minimal elevation gain, you would need a pump capable of outputting around 56GPM at 60-120 PSI (depending on elevation and hose length).  The idea is to run your pump near it’s capacity to be most efficient.

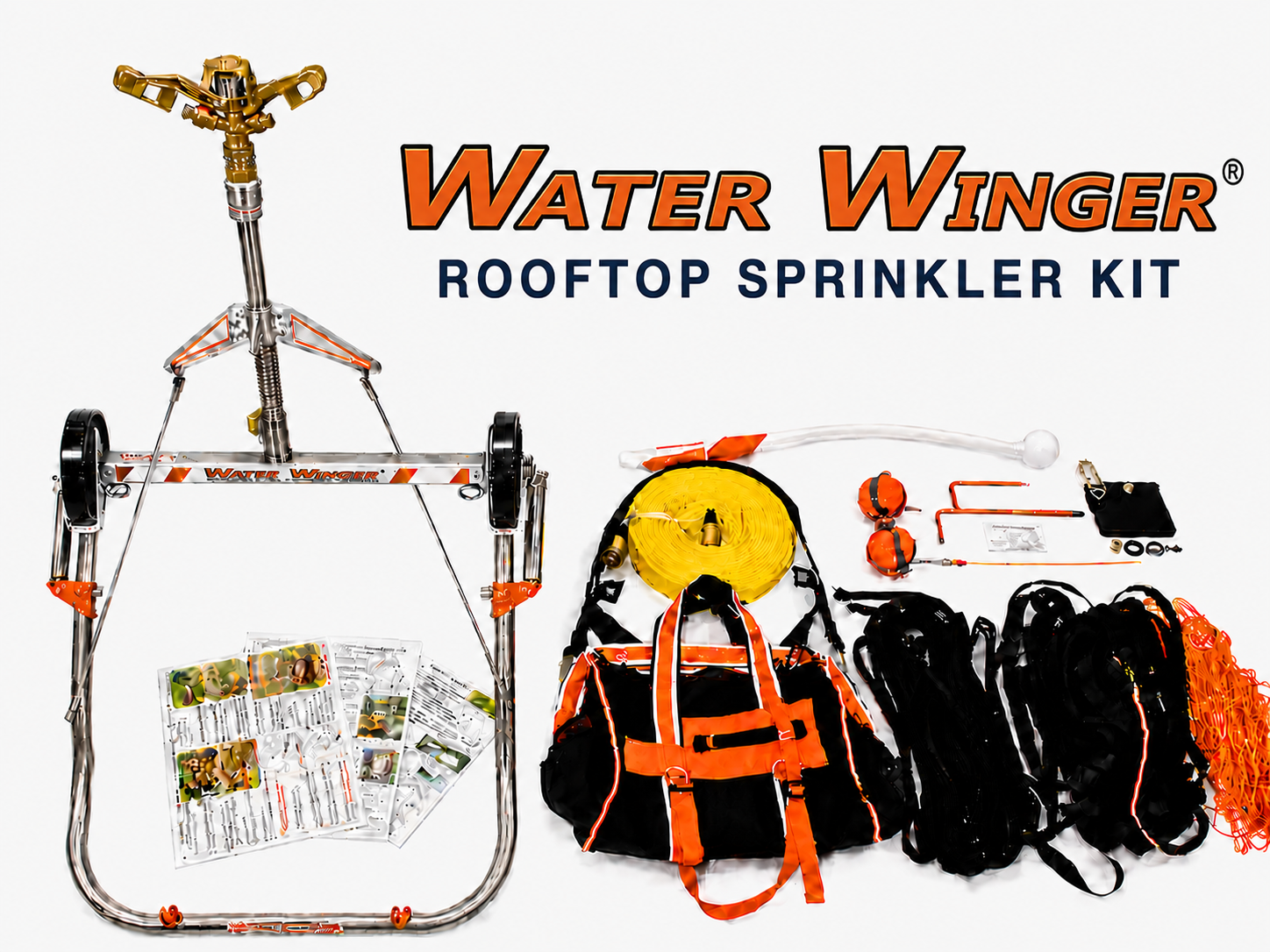

Standard 56 USGPM setup is 2 x Rooftop Water Winger Kits, 2 x 1/2″ RainBird Adjustable spray pattern impact spike sprinklers, 2 x 1/2″ RainBird Weighted Base w/ adjustable spray pattern, 2 x 3/4″ ground spike full circle sprinklers.  Weighted Base sprinklers work on flat roofs, decks, vehicles, flat top tanks and places spike sprinklers don’t.  The pump PSI & GPM requirements for this system will vary depending on hose lay, distance from the pump and elevation to the highest roof peak.

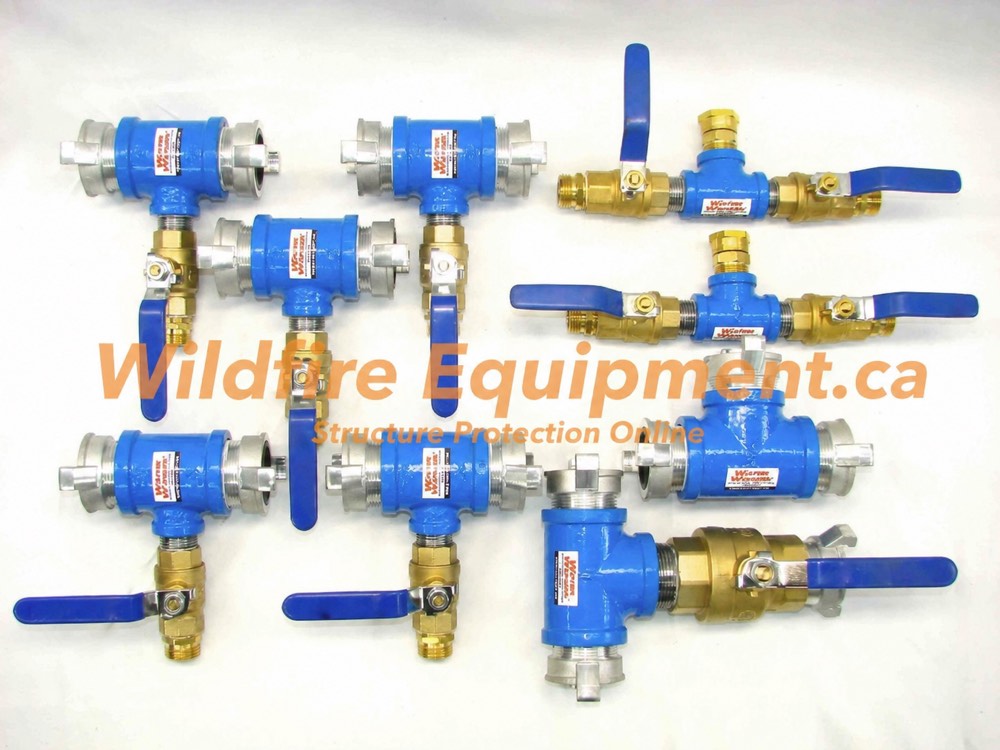

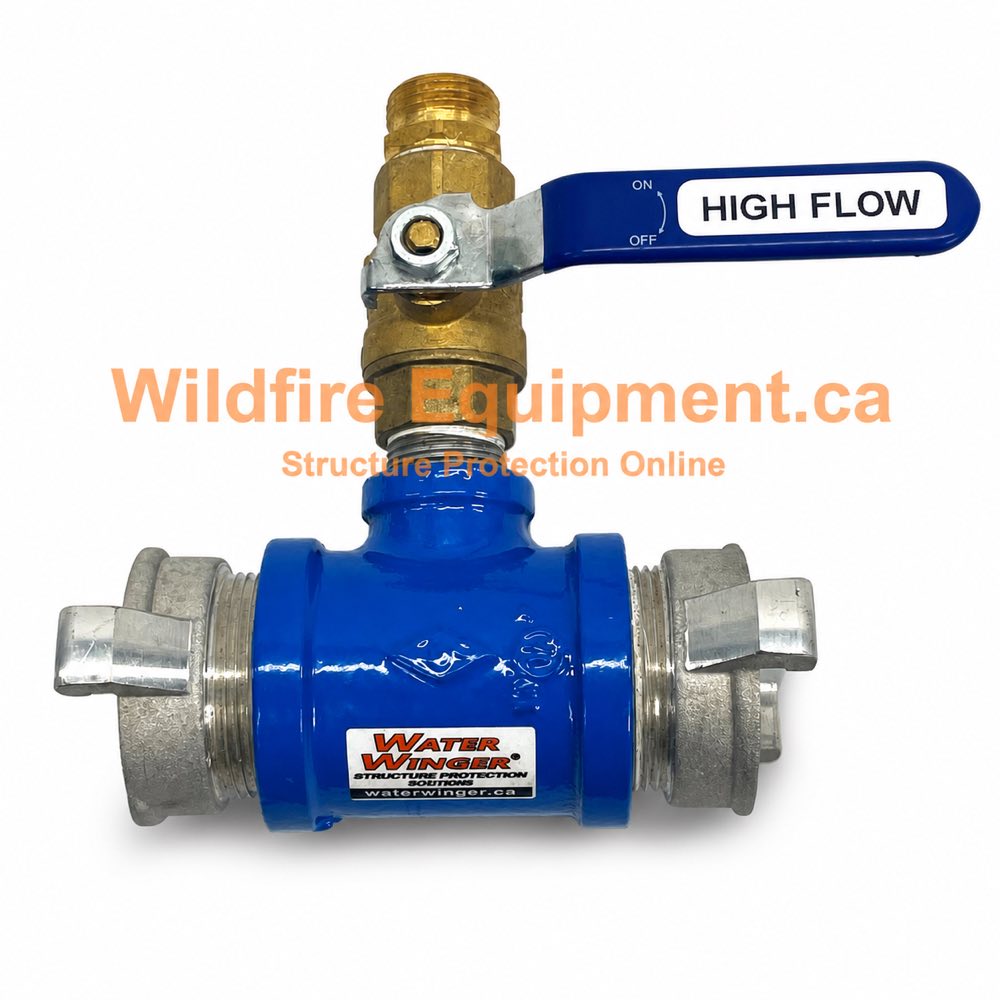

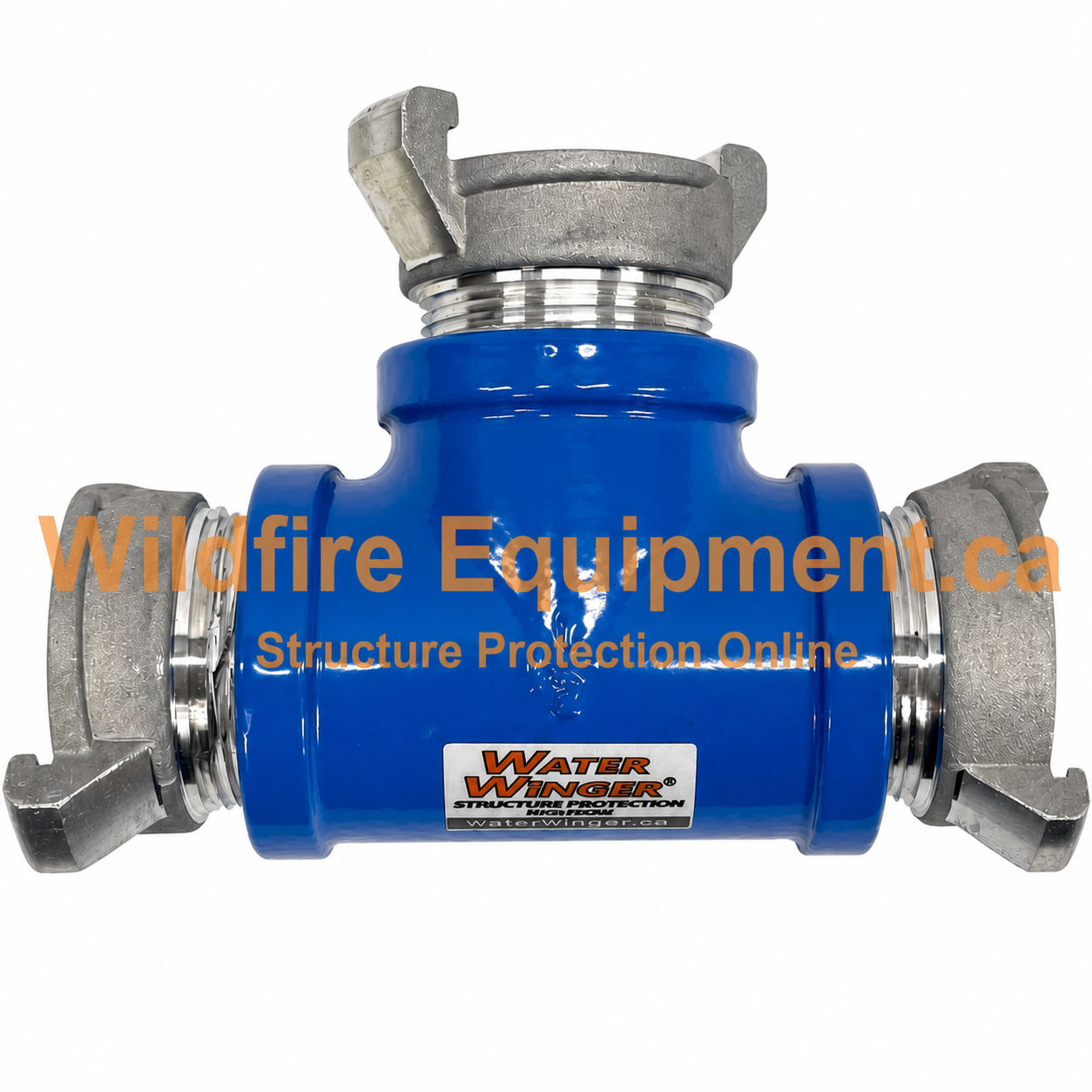

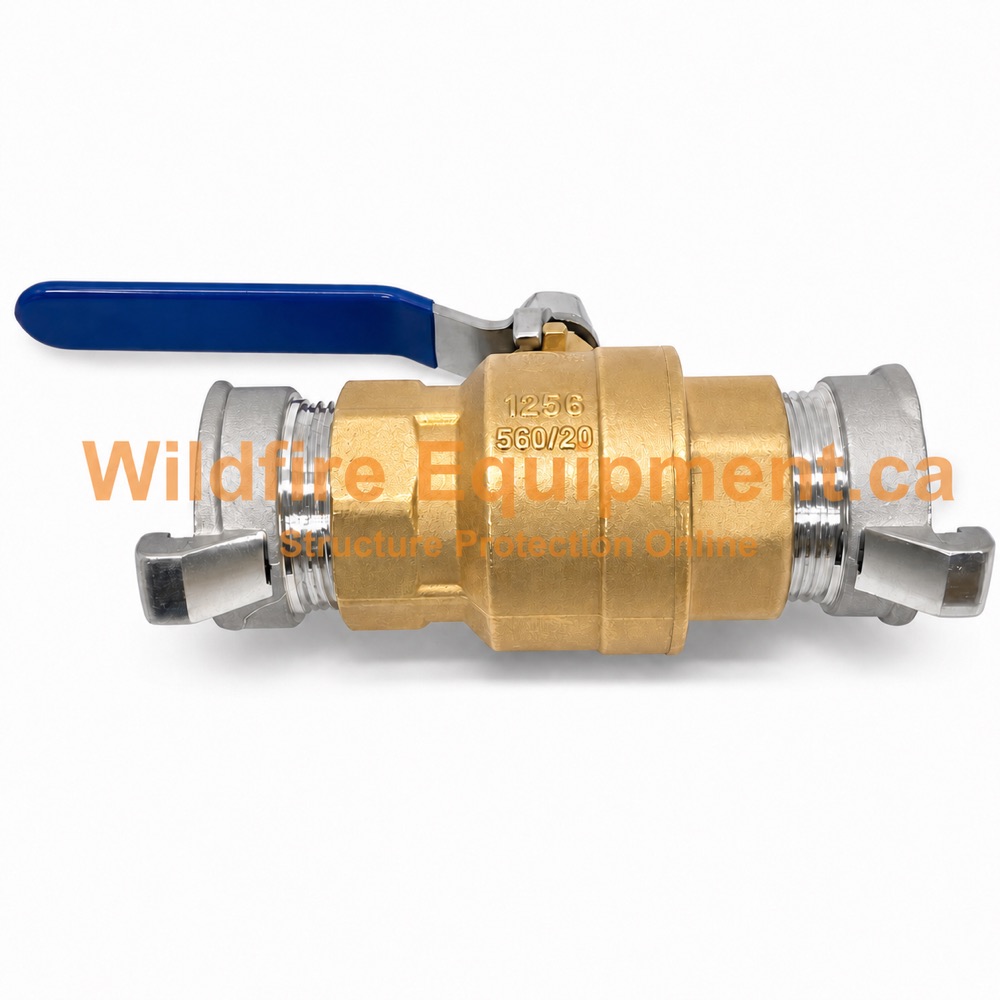

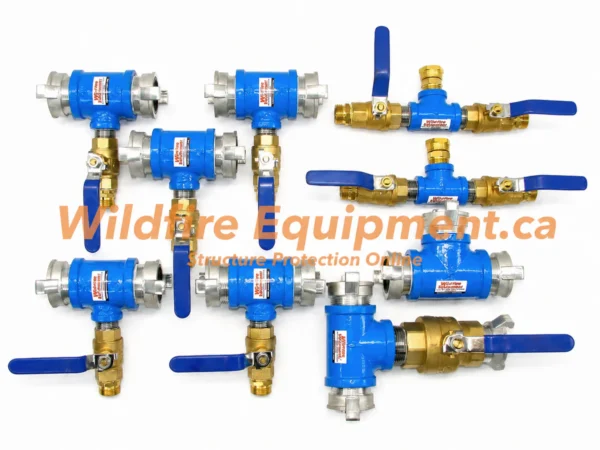

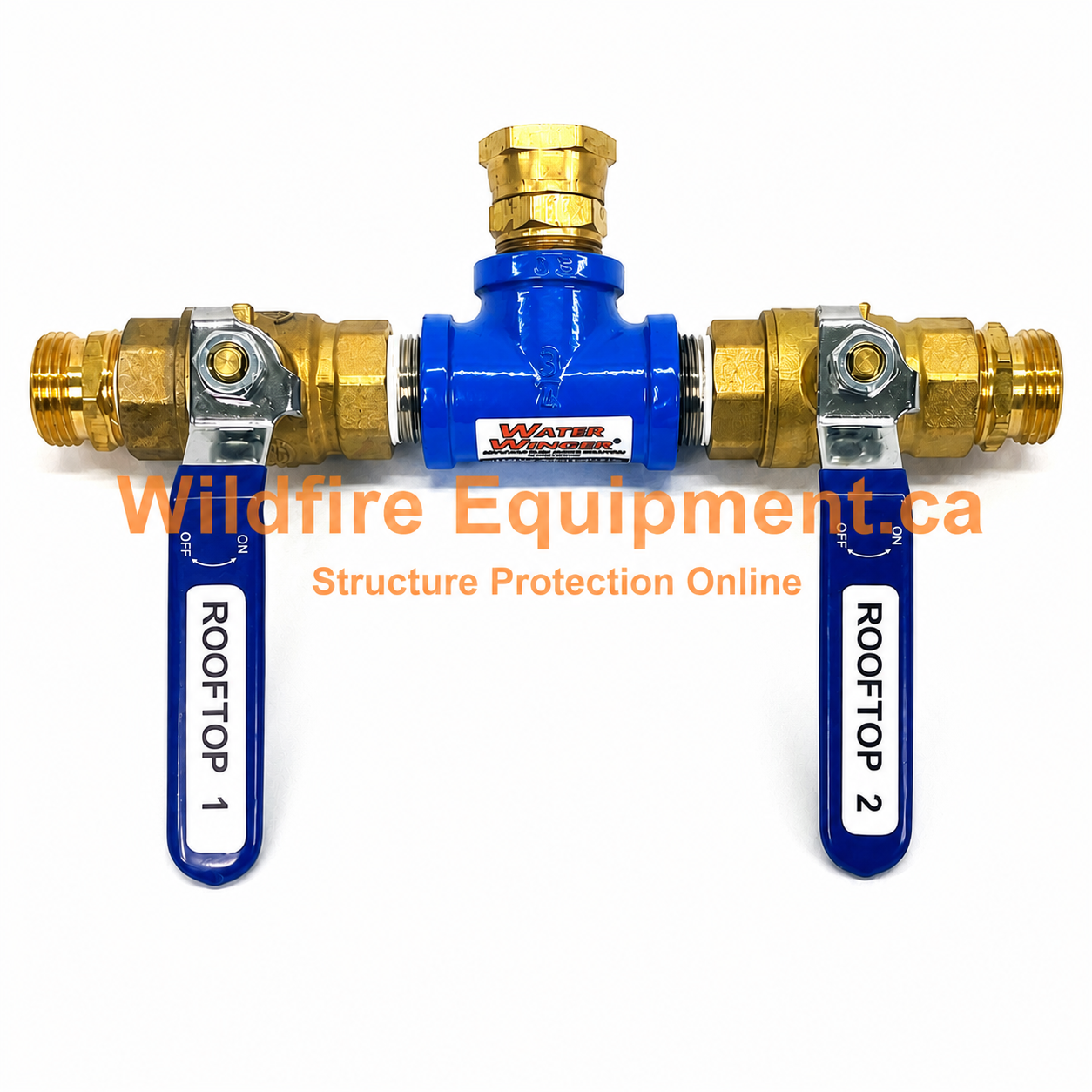

The supply hose AND loop hose are 1.5″ using large bore 1.5″ inline fittings, splitters, valves with forestry twist lock connectors that will mate with BC Wildfire Service hose.

Easily supply multiple large sprinklers on rooftops and the ground around your property.

Have a full size 1.5″ fire hose available at any hose connection every 50′ from the pump to all around the mainline loop.

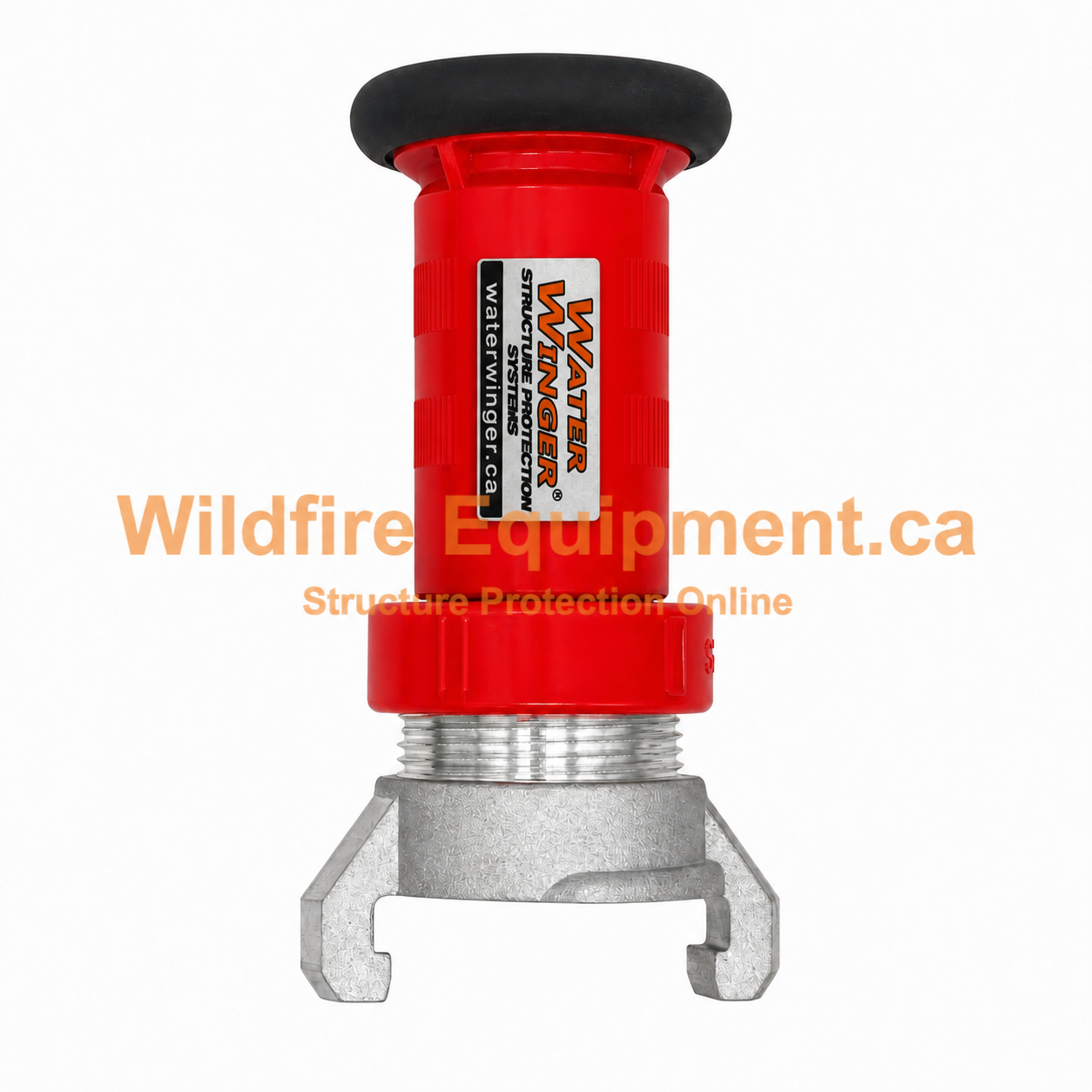

Use the full size 1.5″ hand line fire hose and high GPM 1.5″ nozzle at any hose connection in the system to hand soak the ground, and up into trees and around out buildings quickly.   Soak the perimeter beyond your sprinklers and reach under buildings and overhangs.

This is the way to quickly soak your property and take care of spot fires before they become more dangerous.

A 1.5″ fire hose is great to fill tanks to help others.

If you live on or near the a good water source, you can set up these systems quickly to soak everything that will burn as far out from your buildings as your pump and hose will reach.

We largely custom build these systems to suit individual needs.  These are high end systems built to perform and last.

Full details coming soon, contact us for more information or to book your custom system.

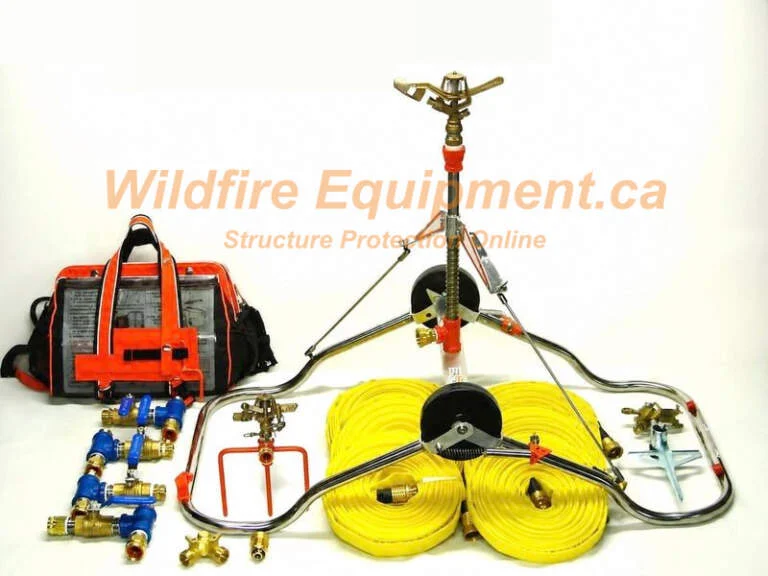

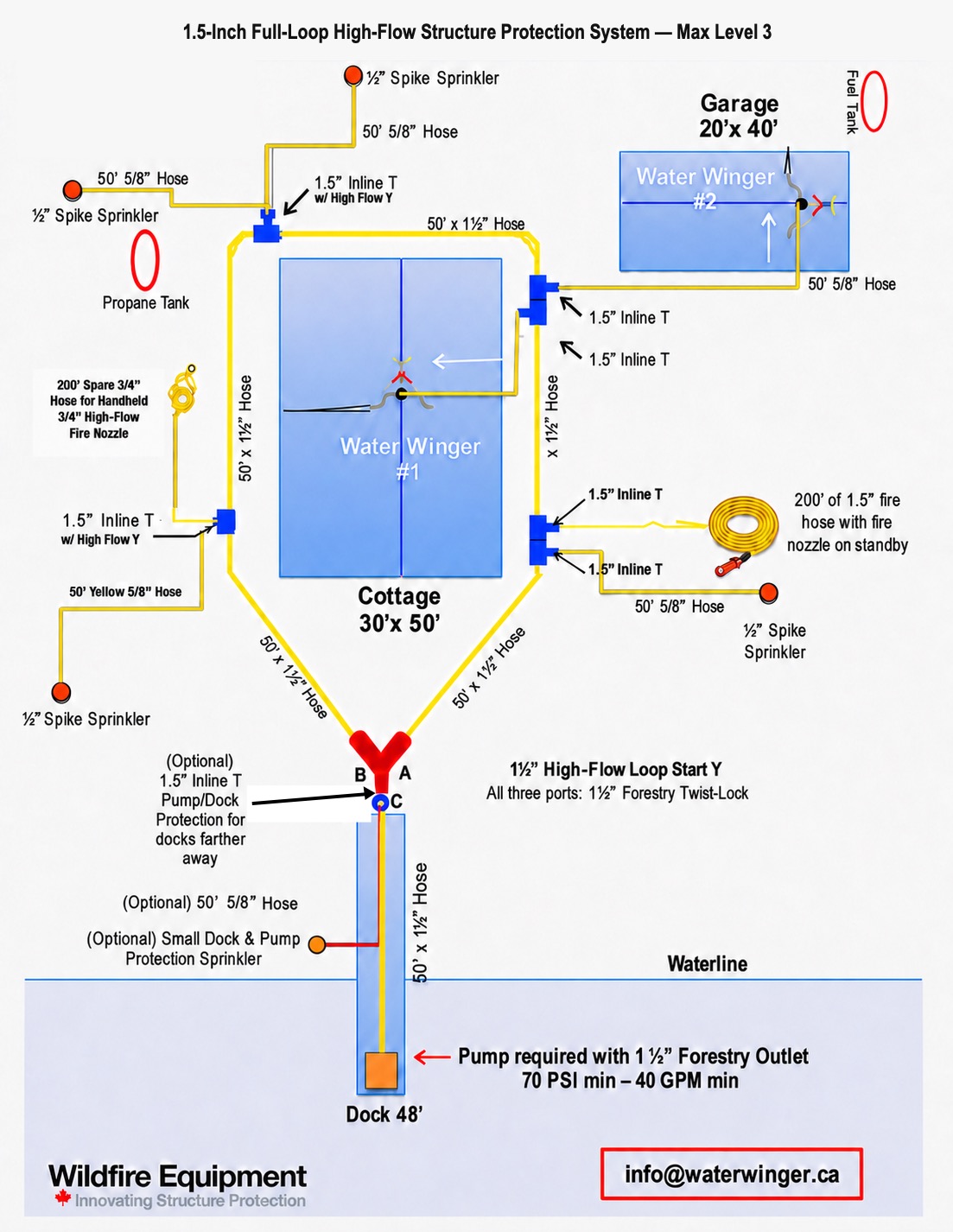

The Level 3 Max System is similar to this Level 2 Standard with 2 extra ground sprinklers, and the hose and fittings are bumped up to 1.5″ for more flow so you can add more sprinklers and have a full size fire hose and nozzle.
