$189.00 CDN
Heavy-duty ground spike sprinkler using the same commercial 3/4-inch Rain Bird impact head as the Water Winger. Up to a 50-foot radius (approximately 7,850 sq. ft.) with the supplied nozzle setup at about 7–9 US GPM and 50 PSI. Changeable nozzles tune flow and throw to the available water supply.
Uses the same commercial 3/4-inch Rain Bird impact sprinkler head fitted to the Water Winger.
Actual throw and wetting area vary with wind, nozzle selection, available pressure and flow, hose losses, terrain and obstructions.
High-flow ground protection
The same commercial 3/4-inch Rain Bird 30 impact head used on the Water Winger, mounted on a heavy-duty ground spike for fast perimeter wetting without roof deployment.
Up to a 50-foot radius provides an approximate 7,850-square-foot circular wet zone in calm conditions.
A solid rotating stream delivers long throw and dependable 360-degree ground coverage.
Position the heavy-duty spike where elevated or wide-area ground coverage is needed, then move it as the plan changes.

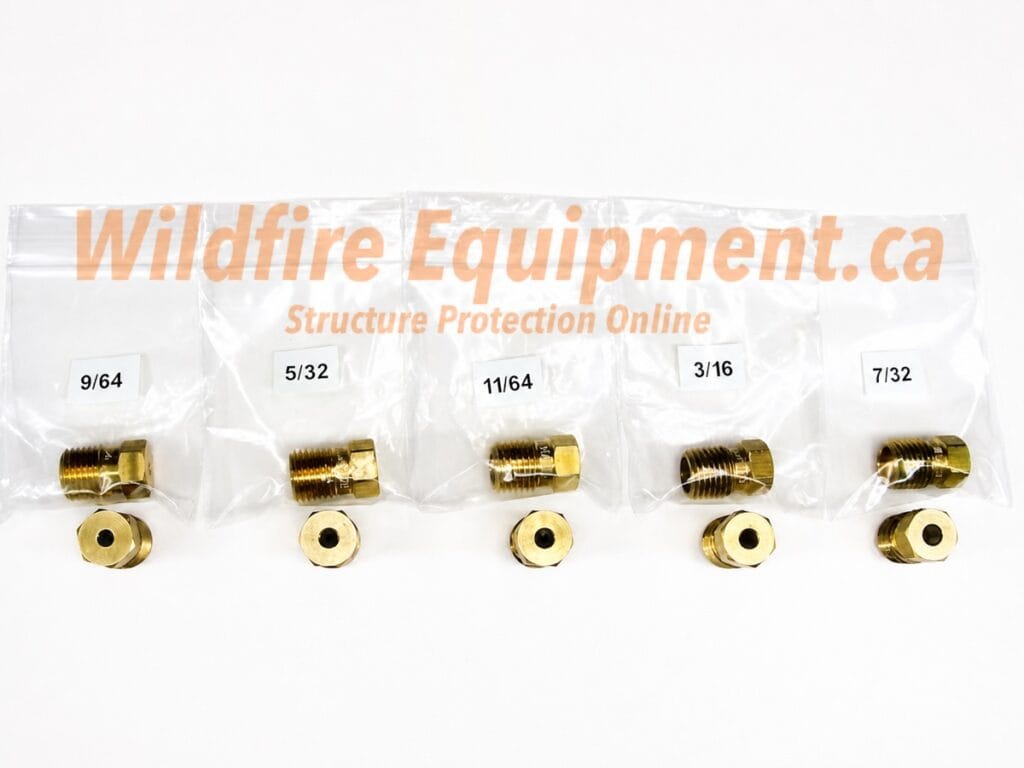

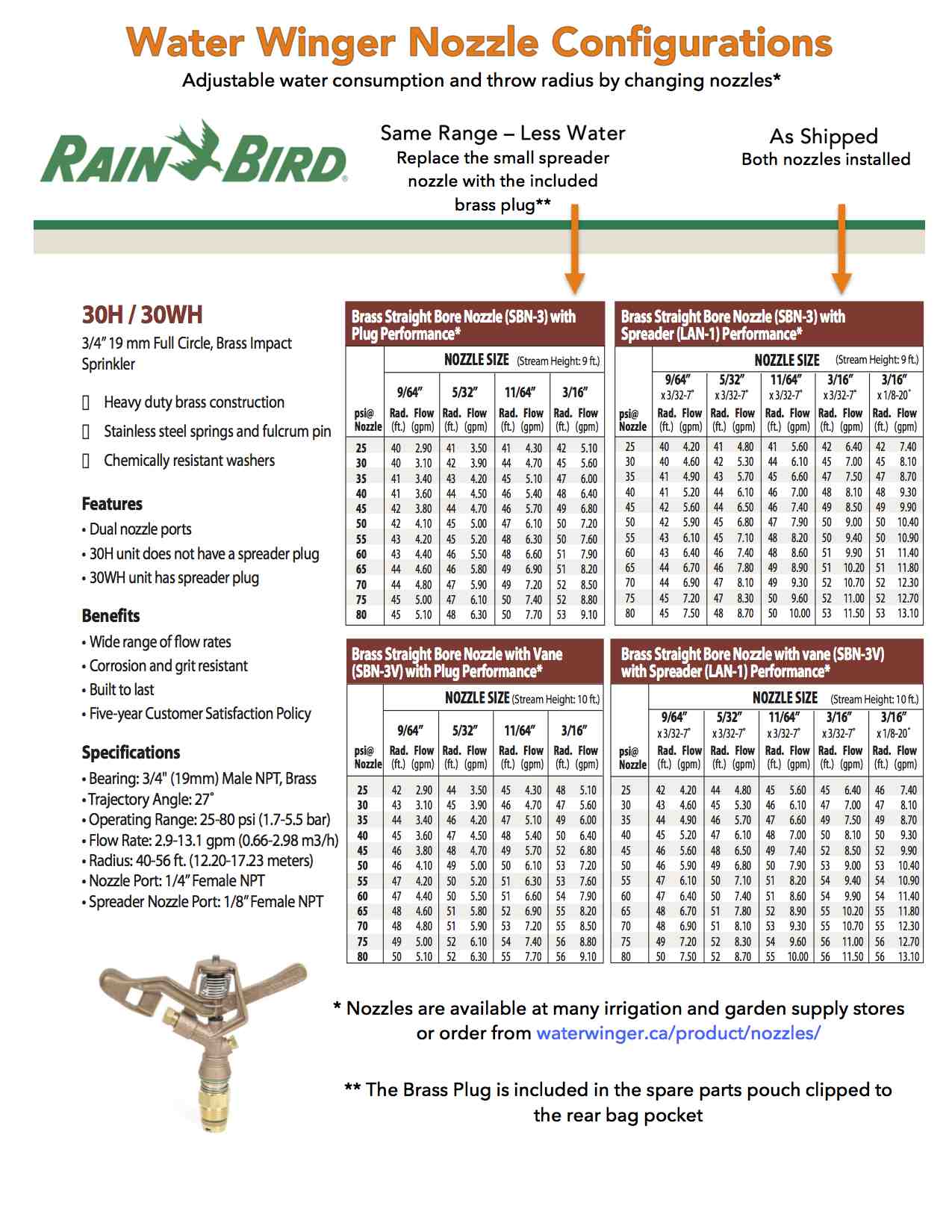

Nozzle tuning
Stock setup: 3/16-inch main nozzle and 3/32-inch spreader nozzle, typically requiring 7–9 US GPM at 50 PSI.
The main and spreader nozzles are changeable. Smaller or larger combinations can be selected to suit the available pressure and flow, just like the Water Winger. A spreader-port plug is included when lower water consumption or maximum throw is preferred.
Coverage is a planning estimate. Actual throw and wetting area vary with wind, nozzle selection, pressure, flow, hose length and diameter, elevation, terrain and obstructions.
Elevated 31-inch ground sprinkler using the same commercial 3/4-inch Rain Bird impact head as the Water Winger. Up to a 50-foot radius (approximately 7,850 sq. ft.) with the supplied nozzle setup at about 7–9 US GPM and 50 PSI. Changeable nozzles tune flow and throw to the available water supply.
$349.00 CDN
Custom sprinkler mounts and configurations built to suit unusual structures, mounting locations and water-system requirements.
Low-profile weighted-base sprinkler with an adjustable 1/2-inch Rain Bird impact head for decks, rooftops and hard surfaces.
$199.00 CDN
