2 Pack Water Winger Kits

Description

Pack of 2 Water Winger Kits

The standard lines included work for buildings 100′ up and over.

Contact us if you will need a longer line set for your larger building.

   Contact Us

You will need a “Y” to run 2 Water Wingers from one yard hydrant or tap.  Most Brass or plastic “Y”s from garden shops don’t flow enough water, due to their restrictive openings. To run 2 Wingers at full potential, you would use a High-Flow “Y” with large bore valves for the best performance.

You can build your own “Y” or purchase one of our pre-built, High-Flow options if you plan to run 2 Wingers from one source like you see in the video below.

The High-Flow “Y” can have 1 or 2 valves.

1 valve to control 2 Wingers:

2 valves to independently control your 2 Wingers:

2 valves is the most versatile option to give you independent control over how much water goes to each Water Winger.  This better balances your water output between Wingers when not using a Full Loop Hose Lay completely around your building.

Water may not flow equally between 2 Wingers depending on the hose length or height differences, or you may want 1 Winger to throw more or less than the other.

As in this video, if your yard hydrant is a distance away, it is best to run a 3/4″ feeder hose to your High Flow “Y” for your 2 Water Wingers.

These 2 Water Wingers are running from 1 yard tap from a well @ 60 PSI @ 18 GPM.

30 minutes will soak a large area.  You do not need to run your system continuously.  Run time will vary depending on heat, wind and how close the fire is.

You will need around 14 – 18 GPM to run 2 Water Wingers @ 50 PSI to get maximum coverage.

The included mister port plugs can be used to plug the mister nozzle ports to maintain a long throw with less pressure. (See chart below)

Also, smaller or larger nozzles can be purchased to tune your Wingers to your water supply.      Shop Nozzles

If your yard tap is not putting out enough water, a plumber can often install an independent irrigation line with less restriction for maximum coverage.

Well pumps usually have an adjustable pressure regulator that you can turn up to increase the pressure for structure protection systems when required.

If you will be evacuated, a system you have already set up like this, is easier for fire crews to keep running, either from your supply or if they decide to connect it to their high pressure pumps.  Having your own structure protection already set up gives you the best chance your home will be protected.

Made in wildfire-prone British Columbia.

Durable, rust-proof stainless steel & aluminum construction.

Buy with confidence.

We 100% stand behind what we manufacture.



Do you have a complicated roof design?  Want to be sure Water Wingers will work for you?

   Contact Us

We can help you decide if Wingers are an option for you.

---

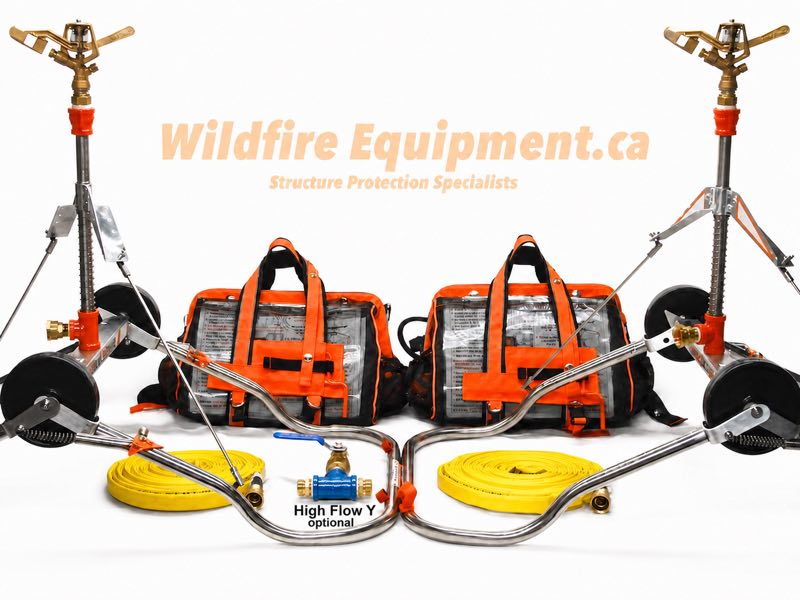

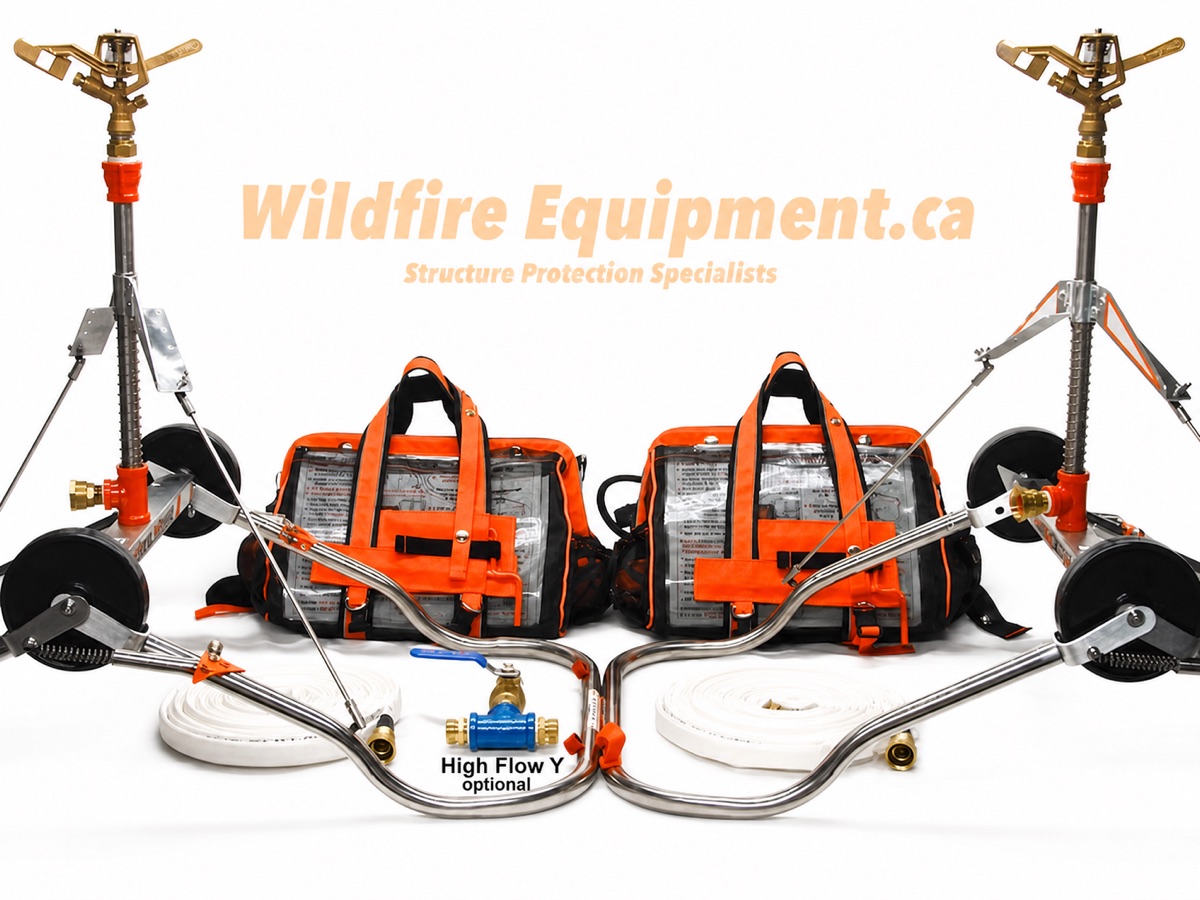

Package Contains:

2 x 50′ lengths of hose IS included – 2 lengths of 5/8″ – 50′ flat style, lightweight forestry hose with Garden Hose Connections are included.    Need More Hose?

2 – Water Winger Kits – Lightweight, rugged, commercial quality, stainless steel & aluminum construction

Bright, reflective markings to make them easily visible on your rooft to fire crews.

Innovative, spring loaded design automatically adjusts to any roof pitch.

2 – 50′ Lay flat, lightweight Hoses with Garden Hose Thread connectors

3/16″ Main Nozzles

3/32″ Spreader / Mister Nozzels

2 – Plugs included to plug Mister nozzles for more range using less water.

Alternate nozzles available to alter water consumption       Shop Nozzles

RAIN BIRD 30WH

2 – Standard Rigging Packages – Rigging line set for structures up to 100′ up and over.  For most 1 & 2 story    structures.  Other line lengths are available, contact us for details.

2 – Deluxe Mesh Rigging Bags – Heavy duty mesh construction with easy load wire rim, designed to drain water and dry lines without unpacking.  High visibility markings and reflective trim,  2 ball pockets, hose storage pocket, instruction card pocket, ground spike sheath built in.

2 – Ground Spike – An option to tie off your Winger lines.

2 – Bag Handle Wrap Straps

2 – Shoulder Straps with New Quick Release Snap System

2 – Ball Chuckers – For longer throws. (May have blue, green or orange grip)

4 – Throw Balls – Specially rigged for smooth retrievals.

2 – Spare Parts Mini Mesh Bags w/ Clip.

2 – Spare Parts Packs – Contents – 1-Hose Washer, 1-Wing Nut, 1-D-Ring, 1-Plug Nozzle for longer reach and less water use.

Waterproof Instruction Cards and Advanced Techniques Cards.

We make them to give homeowners and firefighters a safe method of putting sprinklers onto roofs.  Putting sprinklers onto roofs, and around your property, Minnesota Wildfire Sprinkler Report-08, may be the best chance you have to save what you have when the burning embers from wildfires suddenly blow in.
